(2) Type:

In-line arrangement, water-cooled, four cylinder, diesel engine

(3) Rated Power:

42KW

(1) Overall Length:

5800mm

(2) Overall Width:

1900mm

(3) Overall Height:

2680mm

(4) Max. Discharge height:

4400mm

(5) Min. Discharge height:

3400mm

3.0 Transmission System：

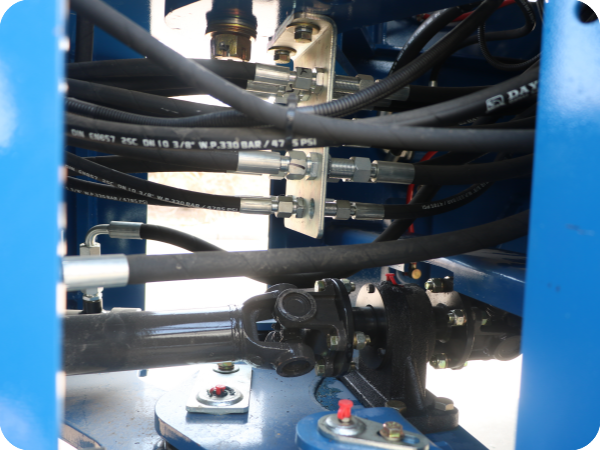

Gearbox + Hydraulic converter + Drive shaft + Hub reduction axle(Disc brake)

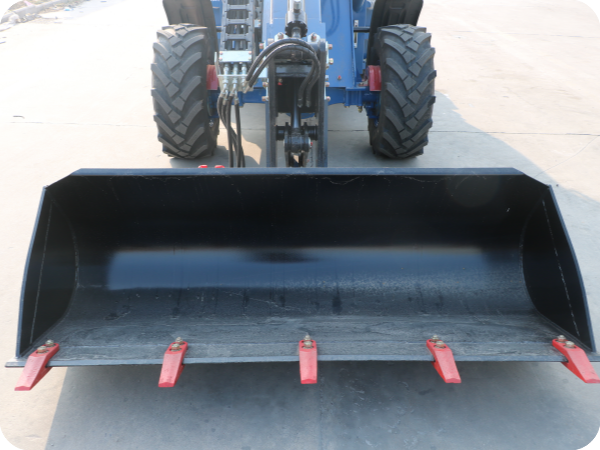

4.0 Bucket：

(1) Capacity:

0.75 m³

(2) Type:

Heavy-duty bolt on teeth

(3) Max. Load:

1800kg  including bucket or attachment

5.0 Operating Specifications

(1) Steering System:

Articulated hydraulic steering

(2) Driving System:

Four wheel drive

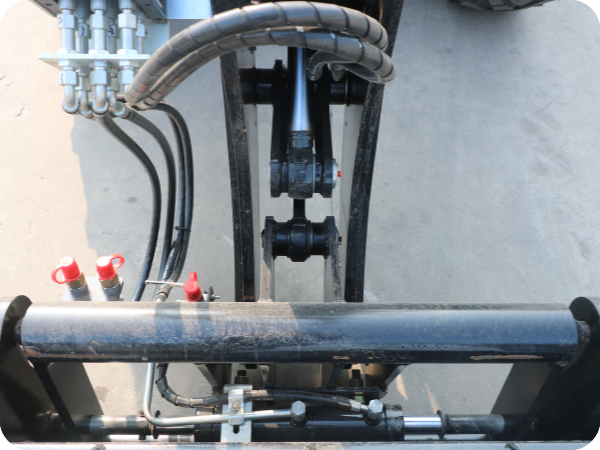

(3) Hydraulic quick release

Yes

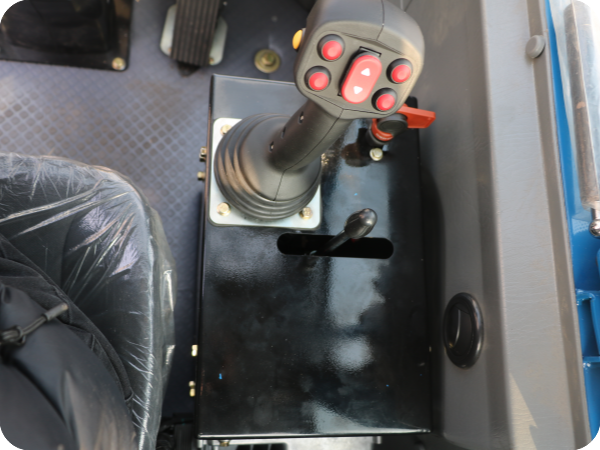

(4) Mechanical pilot joystick

Yes

(5) Steady rise

Yes

6.0 Brake System

(1) Service Brake:

Four wheel disc brake

(2) Parking Brake:

Disc brake

7.0 Tyre

(1) Model:

23.5/70-16

(2) Size:

Width: 330mm       Diameter: 920mm

8.0 Wheel base:  2500mm

9.0 Track:  1550mm

10. System pressure:

16Mpa

11. Weight:

4500KG
