Product Information

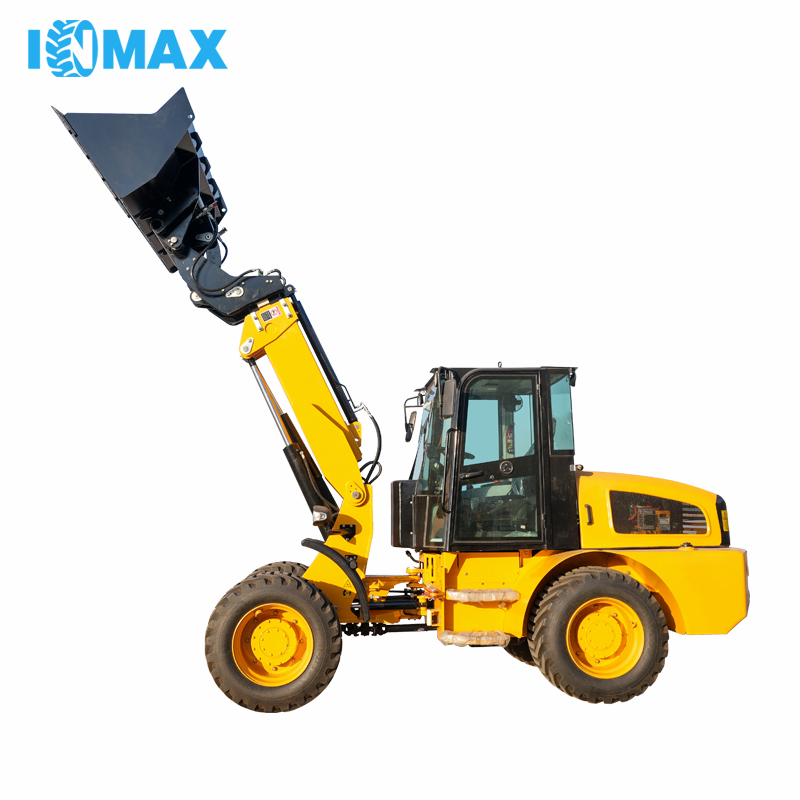

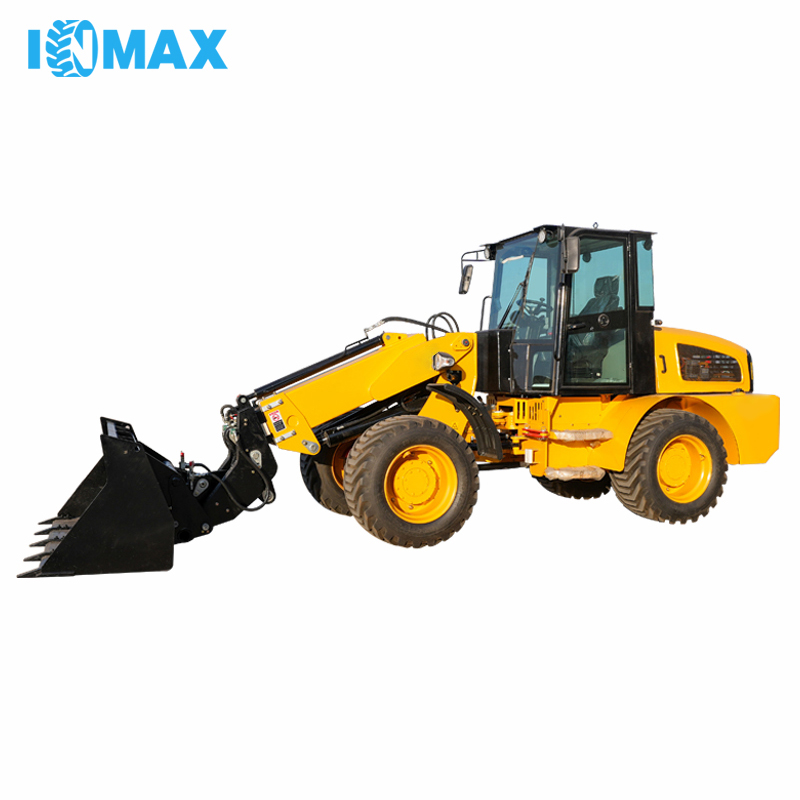

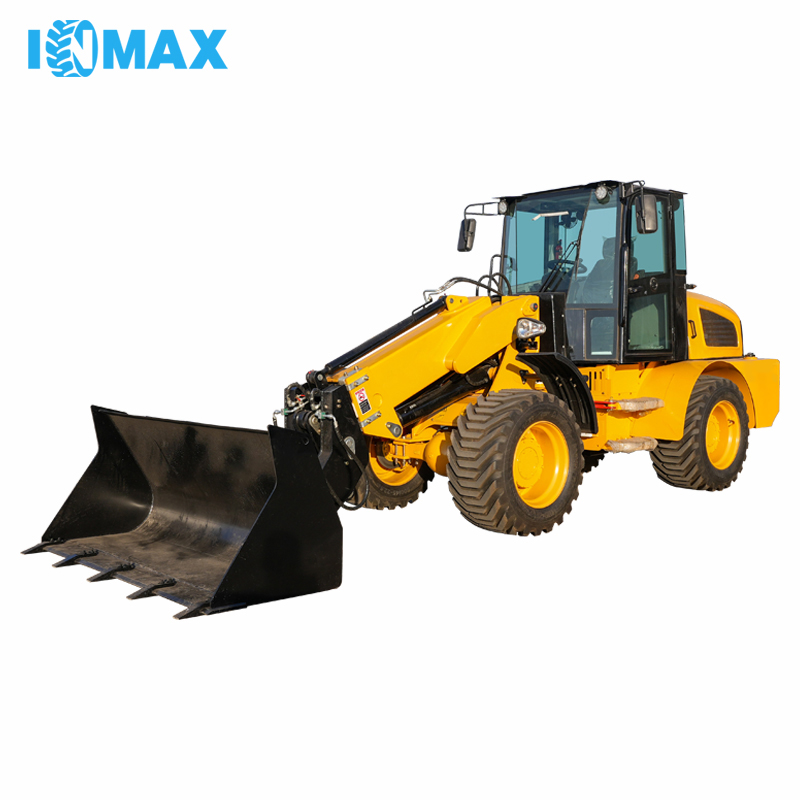

1. H580T stands out with its powerful performance, reliable configuration, and versatile adaptability. It features a strong load capacity (2500kg rated loading) paired with efficient operational dynamics (4 forward & 4 reverse gears, max speed 35km/h),ensuring high work efficiency.+
2. Equipped with optional EU5/EPA4-compliant engines, it meets diverse regional environmental standards. Additionally, it boasts practical functions like automatic leveling and a robust hydraulic system (16Mpa working pressure), enhancing operational safety and convenience.

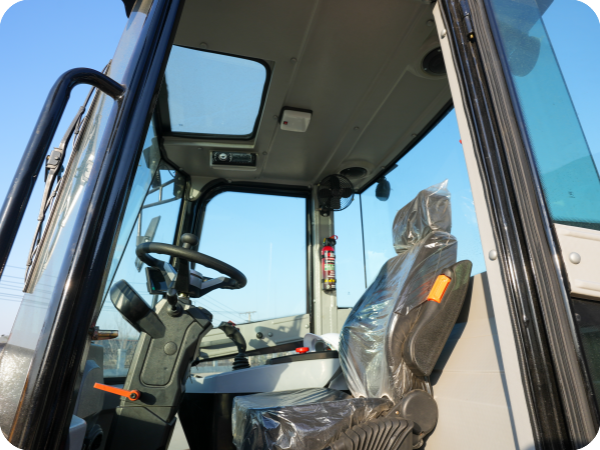

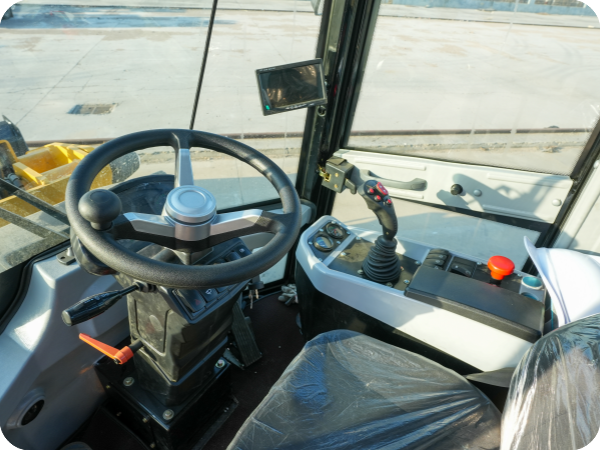

3. The cab features luxurious interiors, a deluxe adjustable seat, and heating, providing a comfortable driving environment. It is equipped with a 10-inch large reversing image, a new adjustable color LCD instrument ,along with electric control functions such as travel, quick change, floating, and telescoping.
4.Additionally, it comes with LED work lights, warning lights, a window breaker, a fire extinguisher, and LED rear tail lights,
ensuring safety and visibility during work.
Technical Parameters
Performance | Model | H580T |
Rated loading | 2500kg(Include bucket or accessories) | |
Operation weight | 6000kg | |
Rated bucket capacity | 1.2m³ | |
Max. grade ability | 30° | |
Min. ground clearance | 360mm | |
Wheelbase | 2550mm | |
Steering angle | 45° | |
Max. dump height | 4100mm | |
Dump distance | 930mm | |
Overall dimension (L*W*H) | 6100x2130x2680mm | |
Min. turning radius | 4510mm | |
Track base | 1600mm | |
Dumping angle | 40° | |
Function of leveling automatic | Yes | |

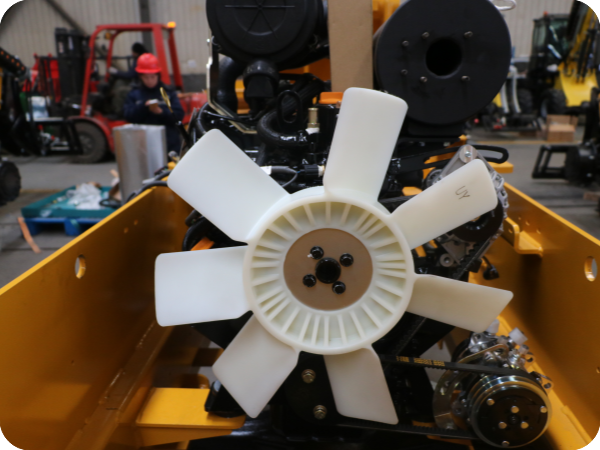

Engine | Brand | YUNNEI YN38GBZ |
Type | Vertical, in-line, water cooling, 4-cylinder, turbo type | |
Rated power | 76KW | |
Optional engine | EU5 engine:YUCHAI EPA4 engine:KOLHER or CUMMINS | |
Transmission system | Torque converter | 265 |
Gearbox mode | Counter shaft, Power-shift | |
Gear shift | 4 forward,4 reverse | |
Max. speed | 35km/h | |

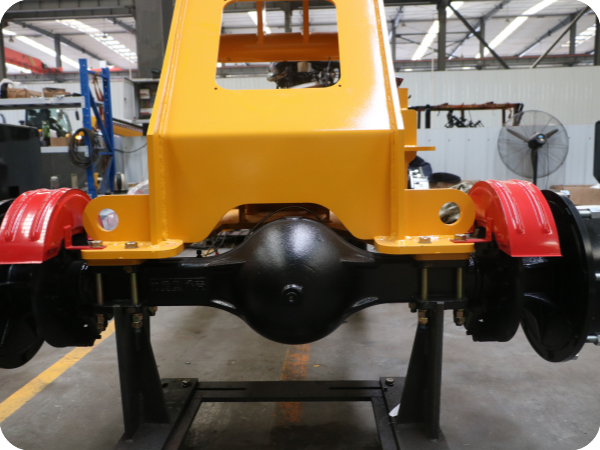

Drive axle | Main reducing spiral | Circular Arc Bevel gear, single stage |
Decelerating mode | Single stage planetary type | |
Hydraulic system | System working pressure | 16Mpa |
System flow | 63ml/r | |
Brake system | Service brake | Hydraulic disc brake on 4 wheels |
Parking brake | Flexible shaft operated external drum | |
Tyre | Tyre model | 500/45-22.5 tubeless tire(16PR) |
Width | 500mm | |
Diameter | 1030mm | |
Filling capacity | Diesel fuel tank | 100L |
Hydraulic tank | 100L |

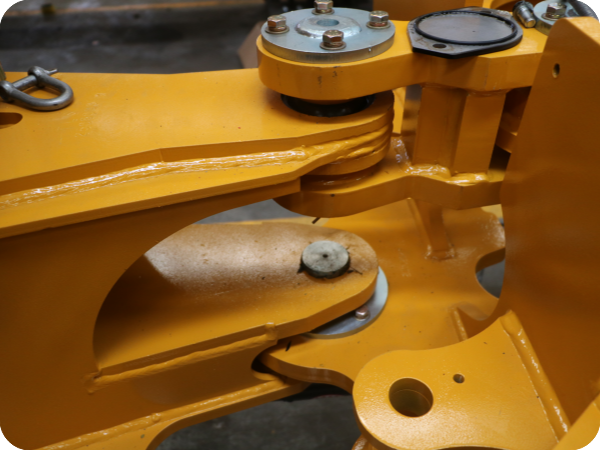

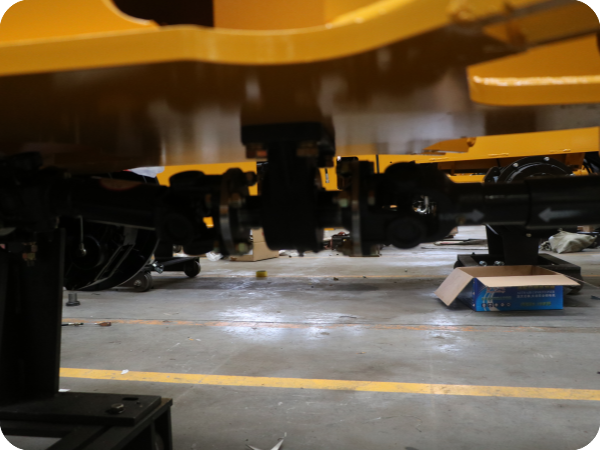

Product Details Images
