Product Information

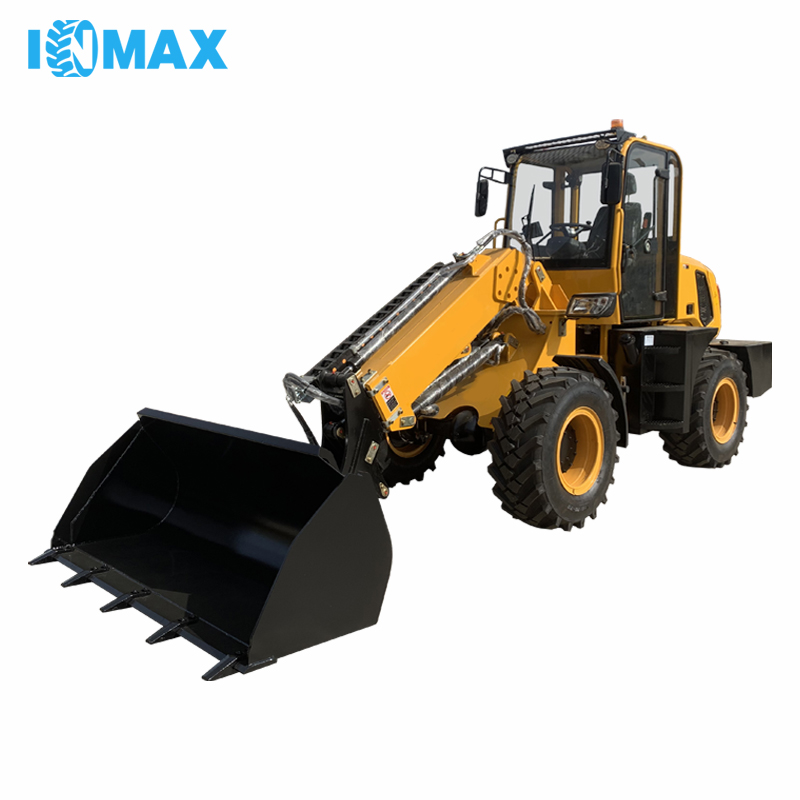

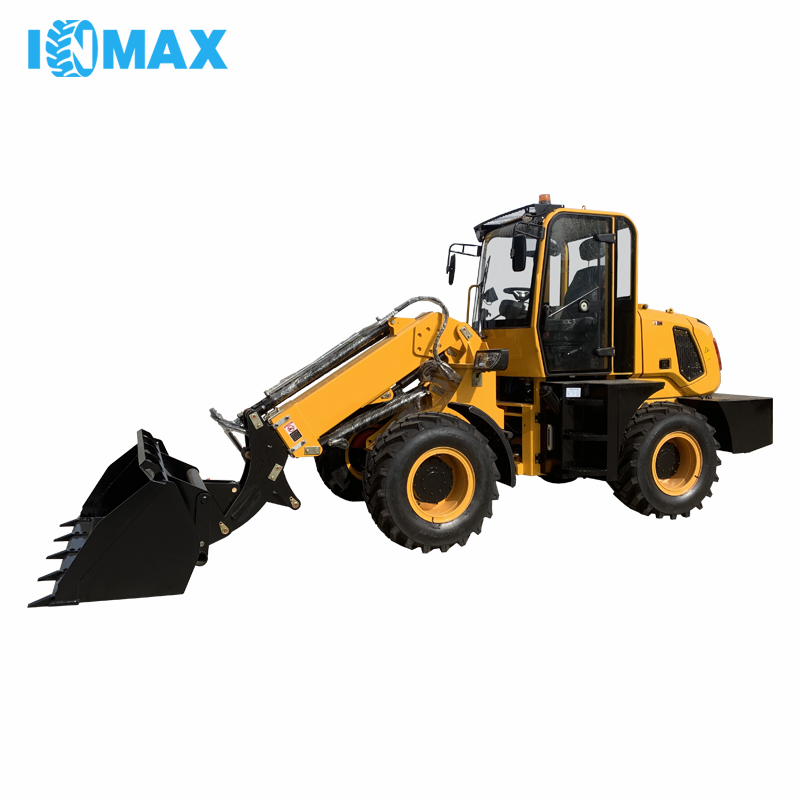

1.The TL2000 telescopic loader is a high-performance workhorse designed for versatile material handling, featuring a robust power system with multiple engine options, strong load capacity (2000kg), efficient transmission, flexible operation , making it ideal for diverse construction, agriculture, and industrial tasks.
2.Equipped with a standard YUNNEI YN33GBZ diesel engine (65KW) and optional models like CUMMINS, CHANGCHAI, and KOHLER (meeting EURO5/EPA4 standards), it adapts to various regional emission regulations and power demands, ensuring onsistent performance across global markets.

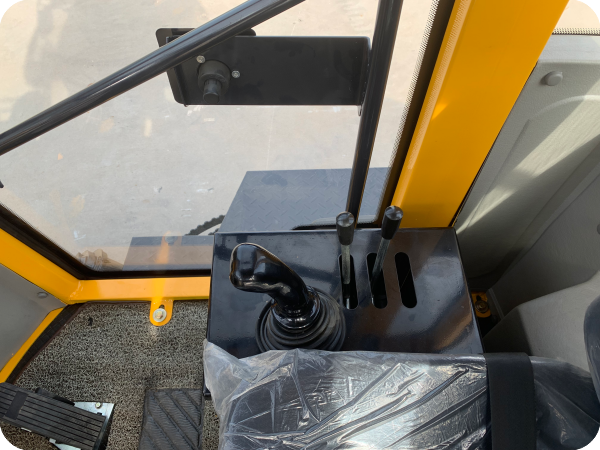

3.Featuring a toothed standard bucket, four-link mechanical pilot with single-handle operation, and a hydraulic quick coupler, the TL2000 enables precise and rapid attachment changes, significantly boosting operational efficiency.

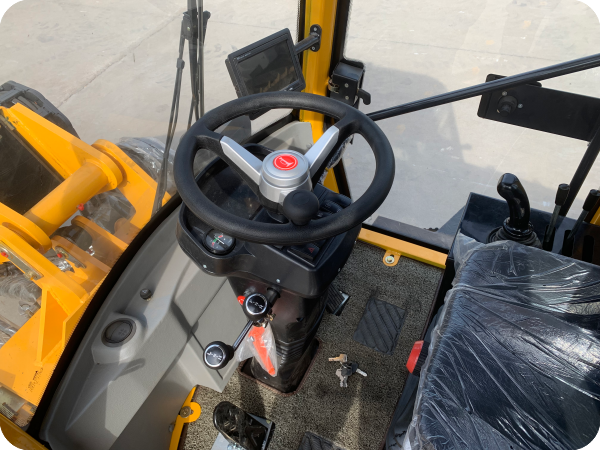

4.The well-designed operator cabin includes adjustable seats with backrests and armrests, a deluxe LCD instrument panel, boom shock absorption function, and practical amenities like LED lights, a timer, diesel fuel gauge, and 220V external power preheating, ensuring a comfortable and safe working environment even during long hours of operation.
Technical Parameters
TL2000 telescopic loader | ||
1.0 Engine | ||
(1) Brand/Model: | YUNNEI YN33GBZ | |
(2) Type: | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine | |
(3) Rated Power: | 65KW | |
(4) Optional Model: | CUMMINS 4BT3.9-C100 EURO5 55KW CHANGCHAI EPA4/EURO5 KOHLER EPA4 CUMMINS | |
2.0 Overall Dimensions | ||
(1) Overall Length: | 6500mm | |
(2) Overall Width: | 2000mm | |
(3) Overall Height: | 2860mm | |
(4) Max. Discharge height: | 4400mm | |
(5) Min. Discharge height: | 3400mm | |
3.0 Transmission System： Gearbox + Hydraulic converter + Drive shaft + Hub reduction axle | ||
4.0 Bucket： | ||
(1) Capacity: | 1m³ | |
(2) Width: | 2000mm | |
(3) Type: | Heavy-duty bolt on teeth | |
(4) Max. Load: | 2000kg including bucket or attachment | |
5.0 Operating Specifications | ||
(1) Steering System: | Articulated hydraulic steering | |
(2) Driving System: | Four wheel drive | |
(3) Hydraulic quick release | Yes | |
(4) Mechanical pilot joystick | Yes | |
(5) Steady rise | Yes | |
6.0 Brake System | ||
(1) Service Brake: | Four wheel disc brake | |
(2) Parking Brake: | Disc brake | |
7.0 Tyre | ||
(1) Model: | 16/70-20 Herringbone Tyre | |
(2) Size: | Width: 380mm Diameter: 1075mm | |
8.0 Wheel base: 2550mm | ||
9.0 Track: 1600mm | ||
10.System pressure: | 20Mpa | |
11. Weight: | 5500KG | |
Product Details Images
