Product Information

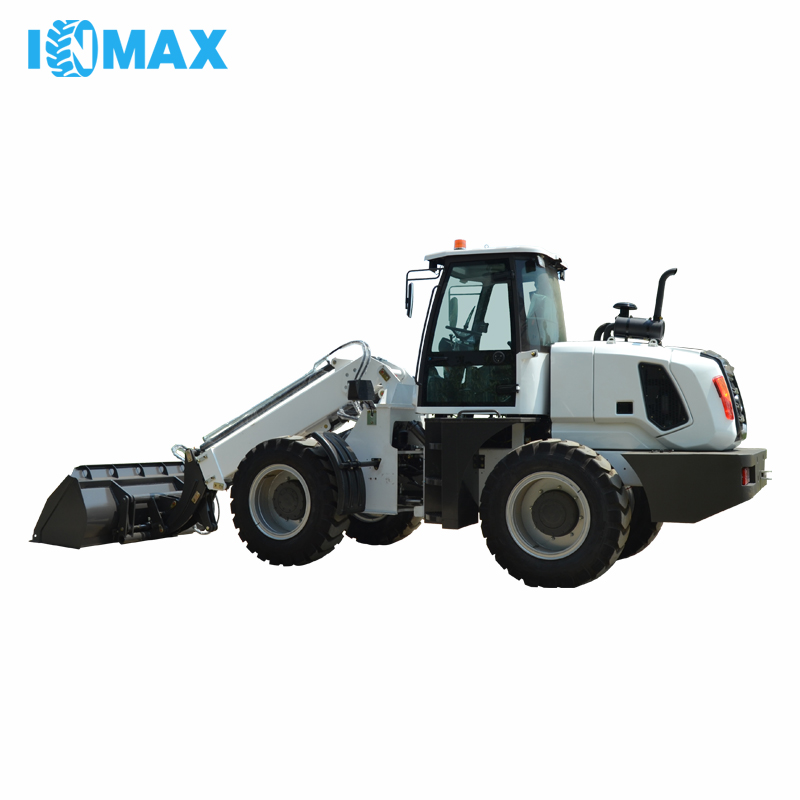

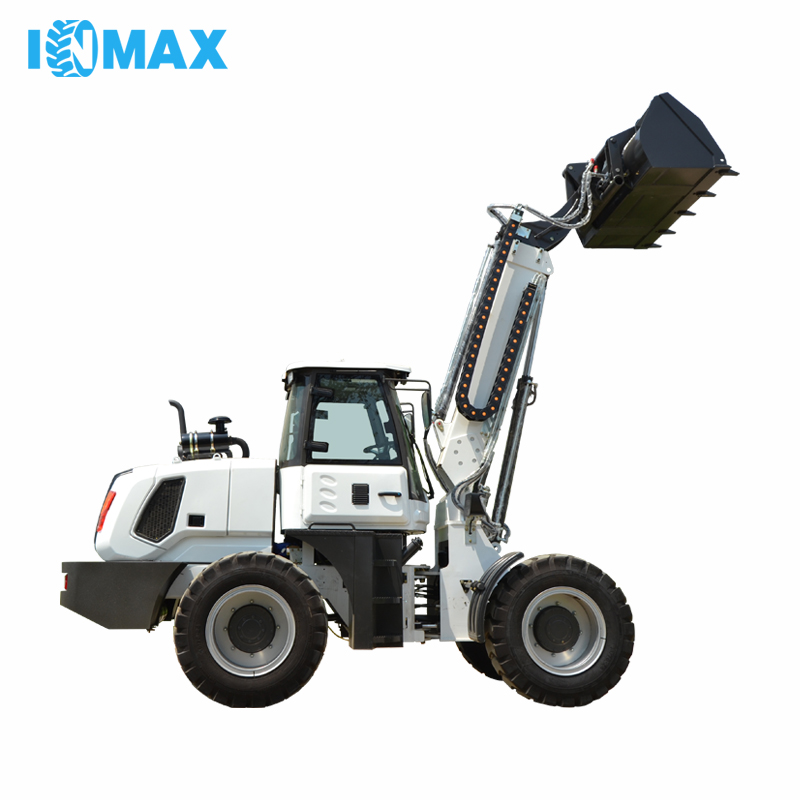

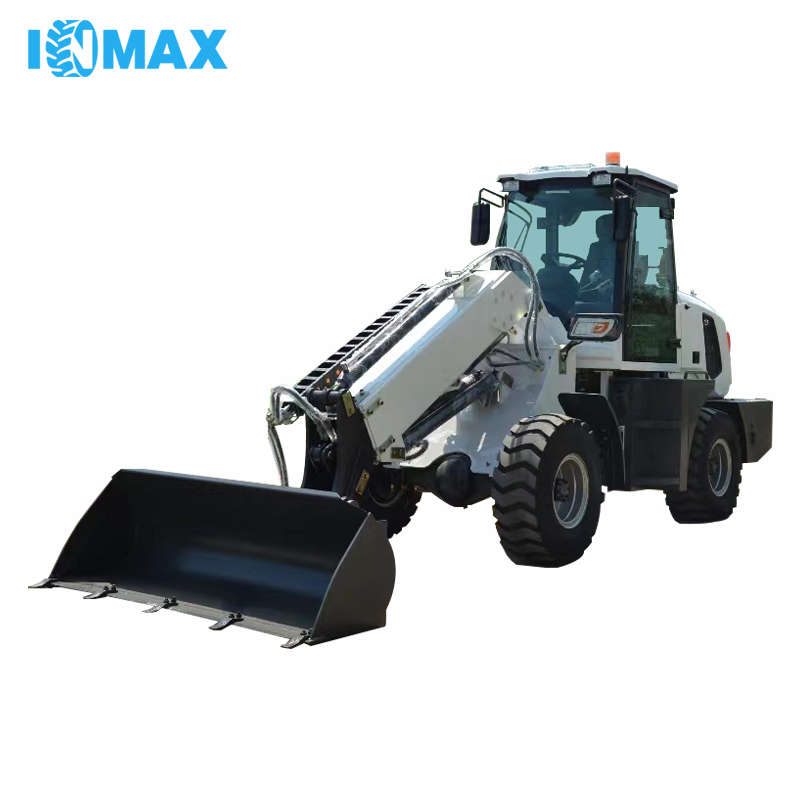

1.The TL3000 telescopic loader integrates powerful performance, versatile adaptability, and efficient operation, designed to excel in diverse industrial and construction scenarios with reliable loading capacity, flexible working ranges, and user-friendly controls.
2.Equipped with a standard YUCHAI YCD4J22T-115 diesel engine (85KW) and optional models from CUMMINS, FPT, etc., covering EURO5,EPA4, and other tiered emission standards, it adapts to global market regulations and operational demands.

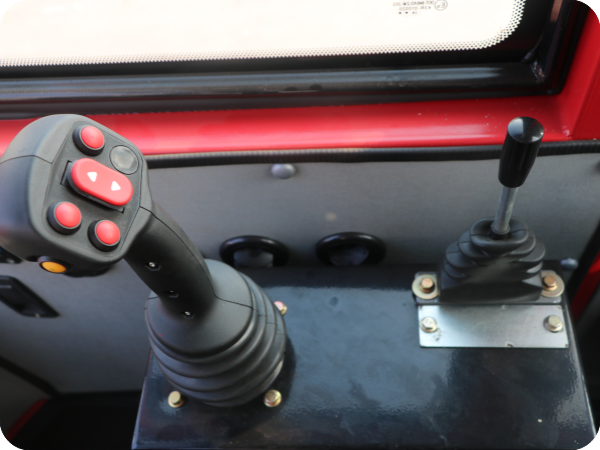

3.Features 4-wheel drive, articulated hydraulic steering, hydraulic quick coupler, and pilot joystick control, enabling smooth,responsive maneuvering. The steady lifting function ensures precise material handling, boosting work efficiency.
4.Equipped with 4-wheel disc brakes for reliable stopping, durable tires (16/70-24 as standard, optional 17.5-25 G2 pattern), and a robust structure (wheelbase 2800mm, track 1750mm), ensuring stable performance across various terrains.
Technical Parameters
TL3000 telescopic loader | ||
1.0 Engine | ||
(1) Brand/Model: | YUCHAI YCD4J22T-115 | |
(2) Type： | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine | |
(3) Rated Power: | 85KW | |
(4) Optional Model: | CUMMINS 4BT3.9-C100/4BT3.9-C125 EURO5 YUCHAI/YUNNEI EPA4/EURO5 FPT EPA4 CUMMINS | |
2.0 Overall Dimensions | ||
(1) Overall Length: | 7200mm | |
(2) Overall Width: | 2200mm | |
(3) Overall Height: | 3000mm | |
(4) Max. Discharge height: | 5000mm | |
(5) Min. Discharge height: | 3800mm | |
(6)Optional Max. discharge height: | 7000mm 9000mm | |
3.0 Transmission System： Gearbox + Hydraulic converter + Drive shaft + Hub reduction axle | ||
4.0 Bucket： | ||
(1) Capacity: | 1.5m³ | |
(2) Width: | 2200mm | |
(3) Type: | Heavy-duty bolt on teeth | |
(4) Max. Load: | 3000kg including bucket or attachment | |
5.0 Operating Specifications | ||
(2) Driving System: | Four wheel drive | |
(3) Hydraulic quick release | Yes | |
(4) Hydraulic pilot joystick | Yes | |
(5) Steady rise | Yes | |
6.0 Brake System | ||
(1) Service Brake: | Four wheel disc brake | |
(2) Parking Brake: | Disc brake | |
7.0 Tyre | ||
(1) Model: | 16/70-24 tire | |
(2) Size: | Width: 410mm Diameter: 1175mm | |
(3) Optional Tire: | G2 pattern17.5-25 tire G2 Width: 440mm Diameter: 1280mm | |
8.0 Wheel base: 2800mm | ||
9.0 Track: 1750mm | ||
10.System pressure: | 20Mpa | |
11. Weight: | 7000KG | |

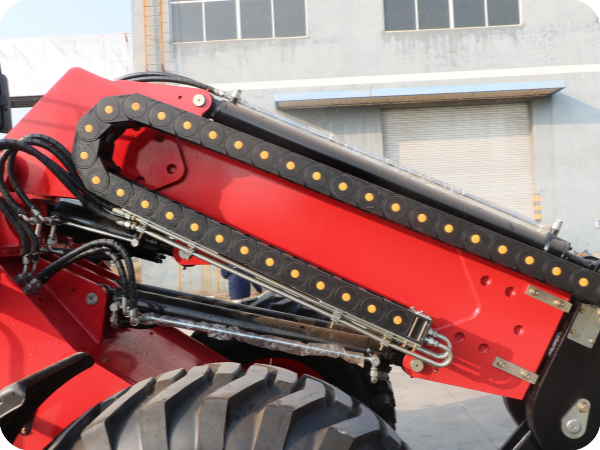

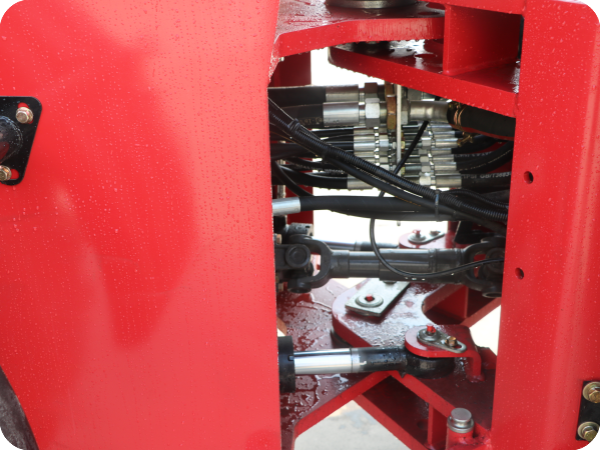

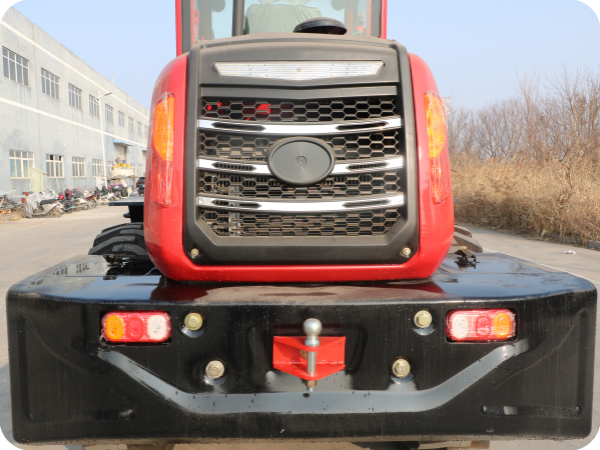

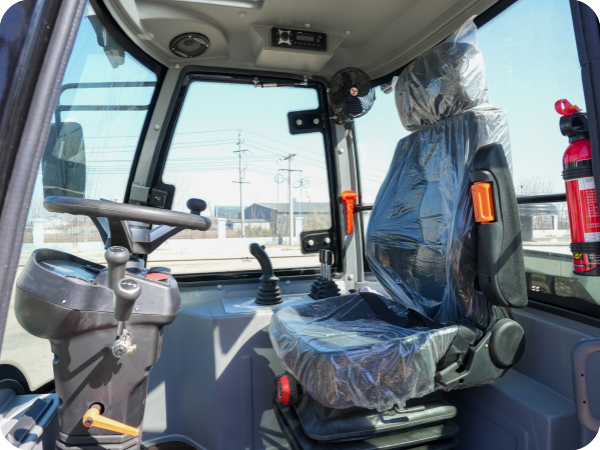

Product Details Images
