Product Information

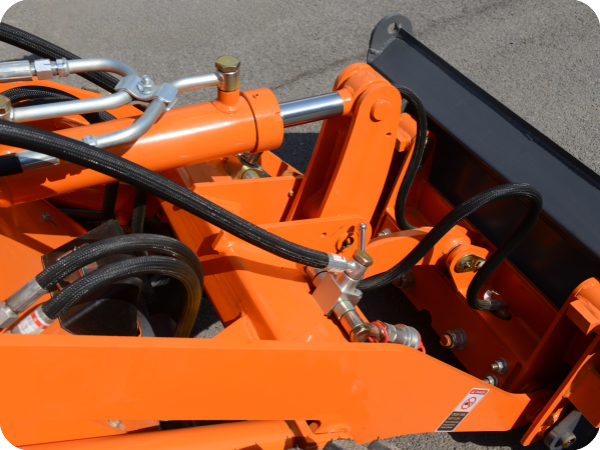

1.Two powerful lifting cylinders are installed in the EV-04 loader. This ensures that the load distribution is always optimally transmitted to the loading arm. It is easier to load and unload goods.
2. Subgrade-you have a wide selection of different tyres available for your Electric Loader EV-04.The drive via the planetary axle increases the torque on the wheel, you work flexibly and economically at the same time.Its optimal tyres for every sitution.

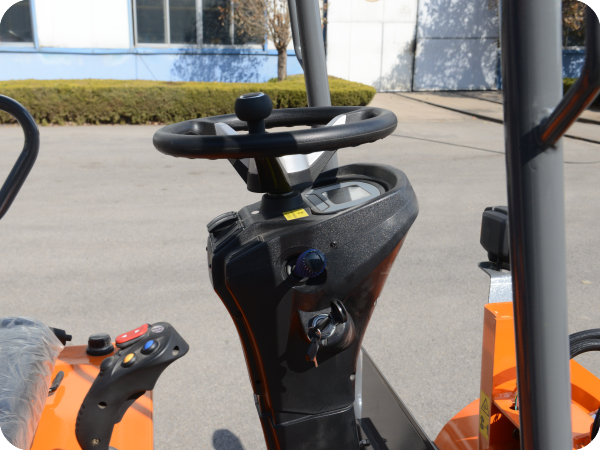

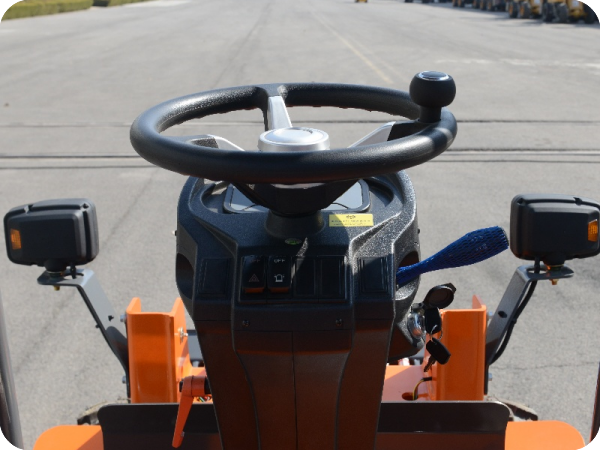

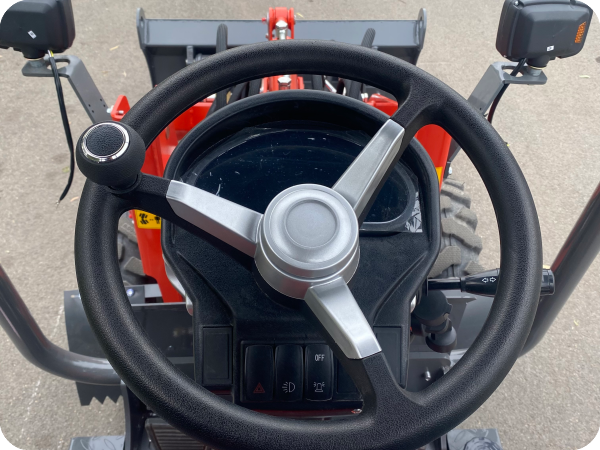

3. The steering column can be individually adjusted according to the operator's request. This ensures that every operator can work with the machine ergonomically and fatigue-free.
4.The joystick lies securely and comfortably in your hand.The control is sturdy and sensitive at the same time. Therefore you always have the machine and the key functions under controll.
Technical Parameters
EV-04 Overall Performance Parameters | |||
Machine parameters (theoretical parameters) | Machine parameters | ||
project | parameter | project | parameter |
Rated load (KG) | 400 | Total length (MM) | 3280 |
Rated capacity of bucket (M³) | 0.22 | Bucket height (total width) (MM) | 1100 |
Tipping height (MM) | 1360 | Total height (MM) | 2100 |
Lifting Height (MM) | 2200 | wheelbasewheelbase (MM) | 1350 |
Maximum load capacity (KG) | 400/600 | Minimum ground clearance (MM) | 200 |
Maximum Rising Power (KG) | 550 | Net weight (KG) | 1150 |
Max Climb Capability (°) | 15 | Number of battery packs | 5 |
Maximum steering angle (°) | 35±1 | Rated voltage (V) | 60 |
drive system | steering system | ||
project | parameter | project | parameter |
Hydraulic system | Types of steering hydraulic systems | Fully hydraulic steering | |
Motor model | YS155-3-60-S02A | system pressure (MPA) | 16 |
Voltage (V) | 60 | Types of steering pumps | Gear pump |
power (W) | 3000 | Steering cylinder diameter (MM) | φ50-25 |
displacement (ML/R) | 14 | quantity (PC) | 2 |
Walking system | braking system | ||
speed (R/MIN) | 3000 | ||
Motor model | KC2500-60-QS | project | parameter |
Voltage (V) | 60 | Service brakes | Drum brake |
tyr | Brake drum (MM) | 240 | |
power (W) | 2500 | Parking brake | Drum brake |
speed (R/MIN) | 3000 | Bucket oil cylinder diameter (MM) | φ73-35 |
type | 23*8.5-12 | Lifting cylinder diameter (MM) | φ60-30 |
working pressure | 0.3 | Number of lifting cylinders (PC) | 2 |
quantity | 4 | ||
Oil capacity | |||
project | parameter | ||
Hydraulic oil tank (L) | 38 | ||
Brake fluid (L) | 0.8 | ||
Product Details Images
