Product Information
1. Boasting a maximum load of 2500kg, it maintains strong lifting performance even at full height (2000kg) and full reach (800kg), making it reliable for heavy-duty material handling tasks.

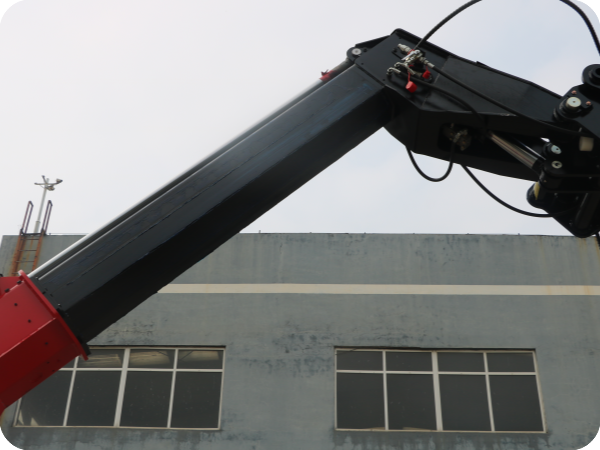

2. It has a telescopic arm that can extend and retract, enabling it to reach different heights and distances. This greatly expands its working range compared to traditional forklifts.
3. Equipped with stabilizers and advanced control systems, it can maintain stability during operation, even when handling heavy loads at extended reaches.
4.Its tires or tracks are designed to provide good traction on different surfaces, making it suitable for both indoor and outdoor operations, including rough construction sites.
Technical Parameters
Project | Parameter | Project | Parameter |
Max. load | 2500kg | Outside turn radius(over tyre) | 3310mm |
Max.lift capacity to full height | 2000kg | Overall height | 2160mm |
Max.lift capacity at full reach | 800kg | Overall width(over tyre) | 2100mm |
Max. lift height | 5900mm | Inside width of cab | 820mm |
Bucket lifting force | 4205N | Front track | 1820mm |
Reach at max. lift height | 450mm | Wheelbase | 2280mm |
Max. forward reach | 3300mm | Overall length to front carriage | 3900mm |
Overall length | 5410mm | Ground clearance | 380mm |
Tyre | 14-17.5Tubeless | Pallet fork length | 1220mm |
Engine brand | YUNNEI/YN27GBZ | Engine rate power | 58KW |
Hydraulic oil tank | 115L | Diesel tank | 63L |
Drive type | 4 wheel drive | Package | 1 unit (1*20GP)，3unit(1*40HP） |
Product Details Images
