Product Information
1. Maximum lift capacity 3000kg, with 2400kg lifting capacity at the maximum lift height of 7000mm; maximum forward reach 3600mm with 1200kg load capacity, easily completing middle-layer stacking and long-distance material transfer.

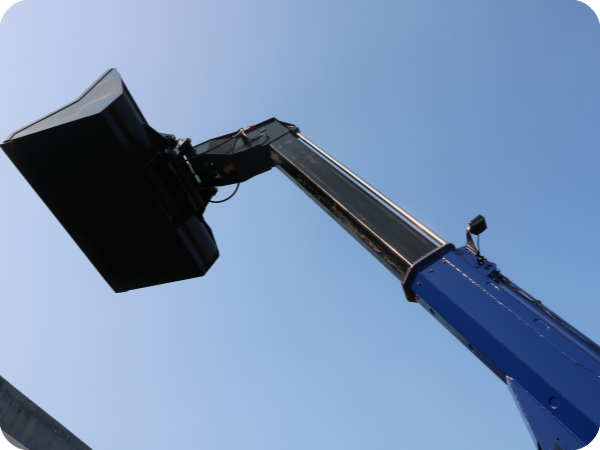

2. Standard pallet fork length 1220mm; attachments such as forks, buckets and grapples can be quickly replaced to switch between material handling and earthwork operations.

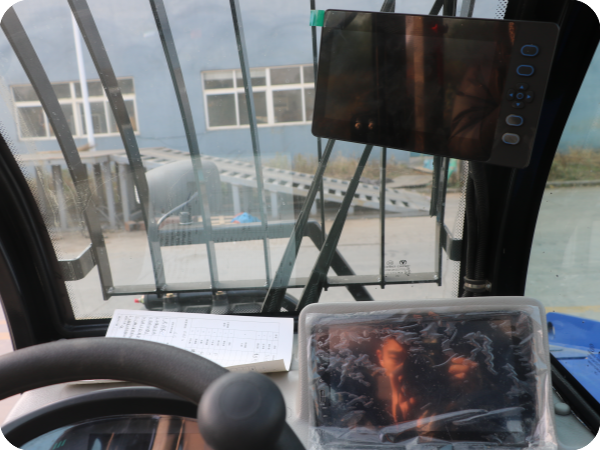

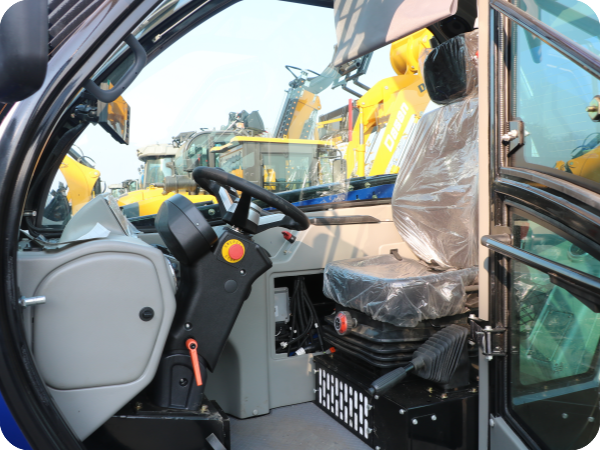

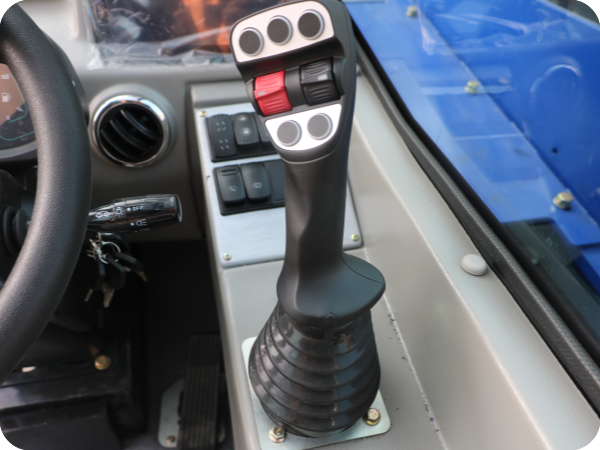

3. Cab inside width 800mm, providing spacious space and wide field of vision; the control panel is simple and easy to understand,reducing the difficulty for new operators and ensuring comfort during long-hour operations.
4.Equipped with 16/70-20 tires, 4WD off-road chassis + anti-slip design, and 350mm ground clearance, suitable for muddy and rough roads.
Technical Parameters
Maximum lift capacity | 3000kg |
Lift capacity to full height | 2400kg |
Lift capacity at full reach | 1200kg |
Lift height | 7000mm |
Reach at maximum lift height | 450mm |
Maximum forward reach | 3600mm |
Weight unload | 7000kg |
Tyre | 16/70-20 |
Outside turn radius(over tyre) | 4250mm |
Carriage roll back angle(degrees) | 42.6 |
Carriage dump angle(degrees) | 37.5 |
Overall height | 2300mm |
Overall width(over tyres) | 2150mm |
Inside width of cab | 800mm |
Front track | 1750mm |
Wheelbase | 2850mm |
Overall length to front tyres | 4200mm |
Overall length to front carriage | 4650mm |
Ground clearance | 350mm |
Engine brand | YUNNEI YN38GBZ |
Engine rate power | 76KW |
Pallet fork length | 1220mm |

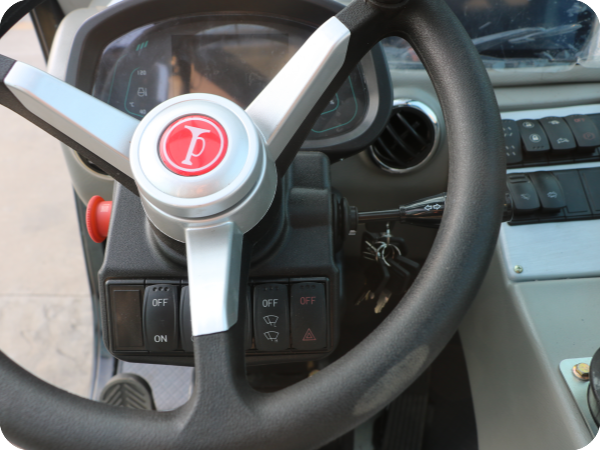

Product Details Images
