Product Information

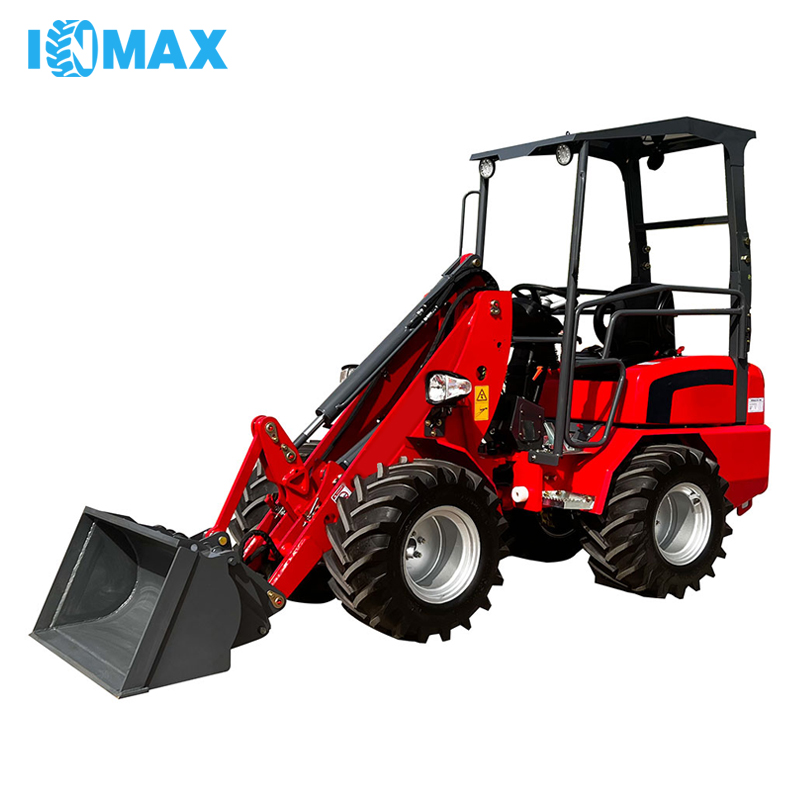

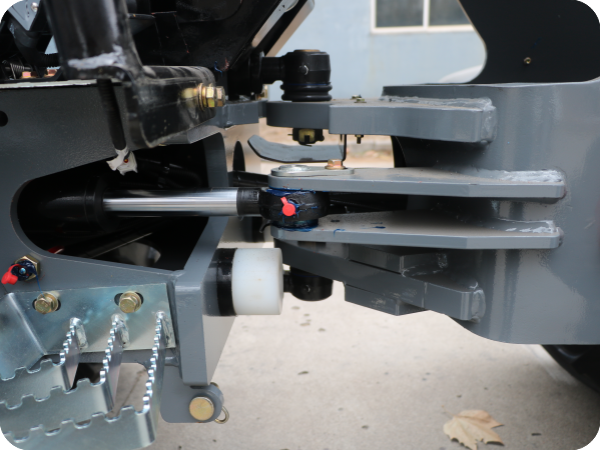

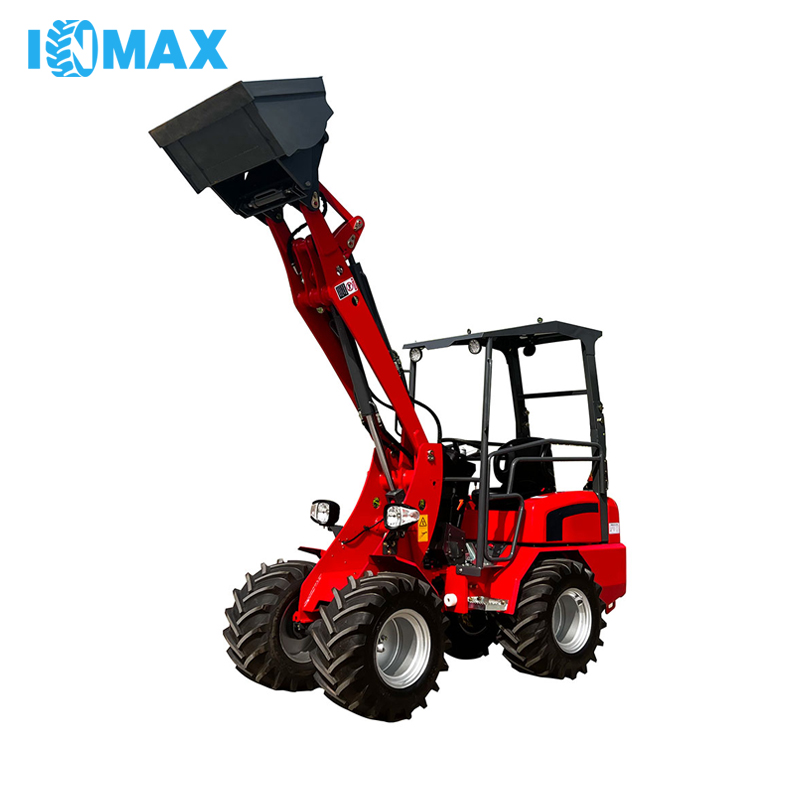

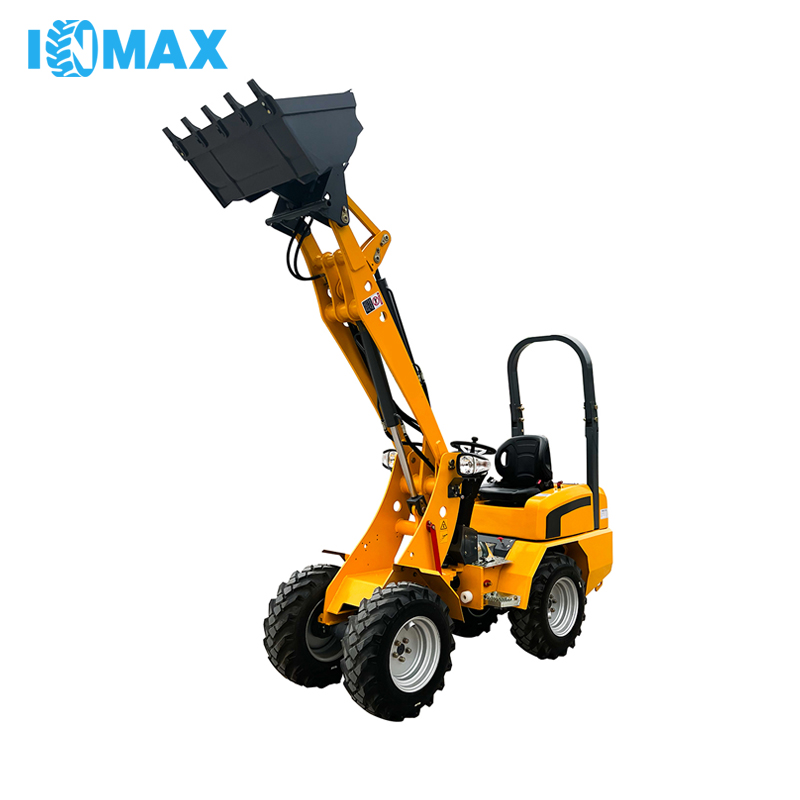

1.The H180 wheel loader exceptional maneuverability shines in tight spaces, thanks to a 49° steering angle and a minimum turning radius of just 2257mm over tires, making it ideal for narrow worksites like construction yards, farms, or warehouses.
2.Powered by the CHANGCHAI 3M78 water-cooled engine (17.75kw rated power) compliant with EURO5 emission standards, the H180 delivers reliable performance with low environmental impact.

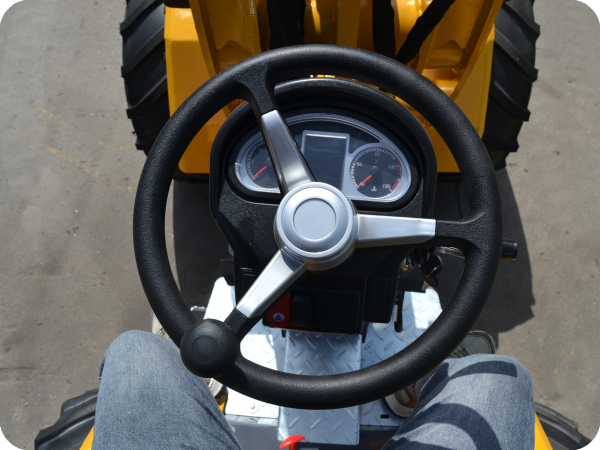

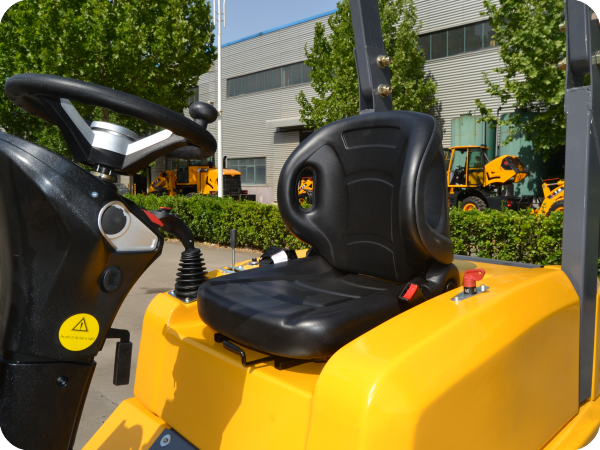

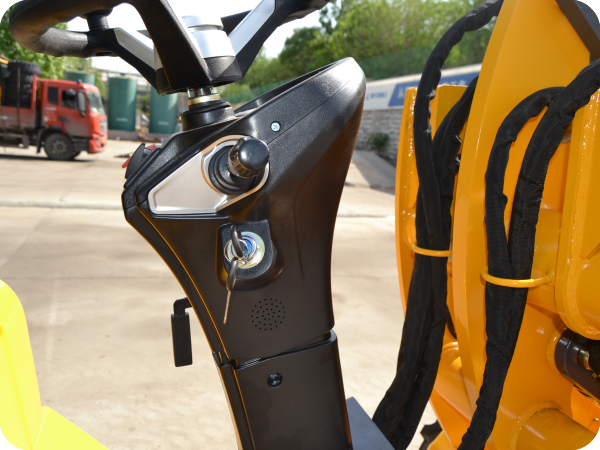

3.The steering wheel can be individually adjusted according to the operator's request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

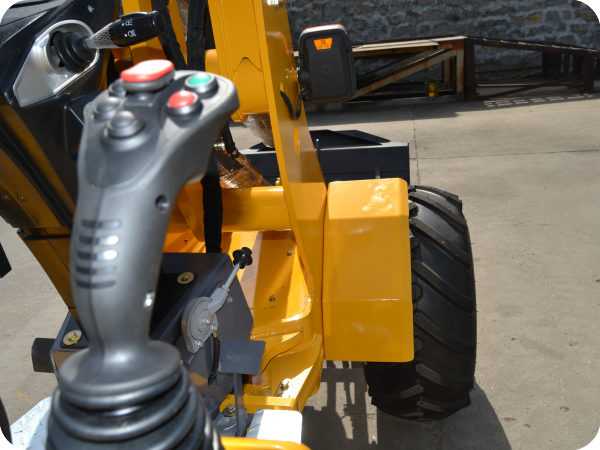

4.The joystick lies securely and comfortably in your hand.The control is sturdy and sensitive at the same time. Therefore you always have the machine and the key functions under controll.
Technical Parameters
Rated load | 800kg |
Operation weight | 2200kg |
Max. load | 1000kg |
Max. Shovel width | 1150mm |
Bucket capacity | 0.3cbm |
Max. grade ability | 30° |
Min. ground clearance | 200mm |
Wheelbase | 1540mm |
Steering angle | 49° |
Max. dump height | 2167mm |
Load over height | 2634mm |
Hinge pin height | 2900mm |
Dump distance | 920mm |
Overall dimension (L*W*H) | 4300x1160x2150mm |
Min. turning radius over shovel | 2691mm |
Min. turning radius over tyre | 2257mm |
Track base | 872mm |
Dumping angle | 45° |
Function of leveling automatic | Yes |
Engine brand/model | CHANGCHAI 3M78 |
Type | Water cooled |
Rated Power | 17.75kw |
Rated Speed | 2600r/min |
Number of cylinders | 3 |
Emission standard | EURO5 |
Type | Closed hydrostatic |
Max. speed | 20km/h |
Pump maximum flow | 42L/min |
Pump maximum pressure | 200bar |
System voltage | 12V |
Starter type | Electric |
Battery brand | Varta |
Tyre model | 10.0/75-15.3 |
Hydraulic tank | 45L |
Fuel tank | 45L |
Product Details Images
